Storage Device System and Passenger Service Unit, in Particular for a Fuselage of an Aircraft Comprising a Passenger Cabin

US Patent US 2015/0035424 A1

Abstract

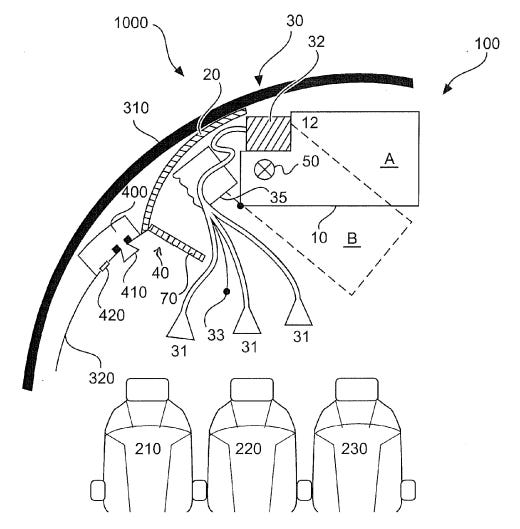

The invention relates to a storage device system adapted for integration into the ceiling part of a passenger cabin of an aircraft, comprising: a stowage housing of a stowage bin and an external housing part, wherein the stowage housing is adapted to provide a lower position and an upper position, and the stowage housing is mounted pivotal relative to the external housing part. According to the invention a space between the stowage housing and the external housing part, is defined as an application-space, wherein an emergency oxygen unit for at least on passenger is placed in the application-space.

Available via Google Patents: https://patents.google.com/patent/US20150035424A1/
